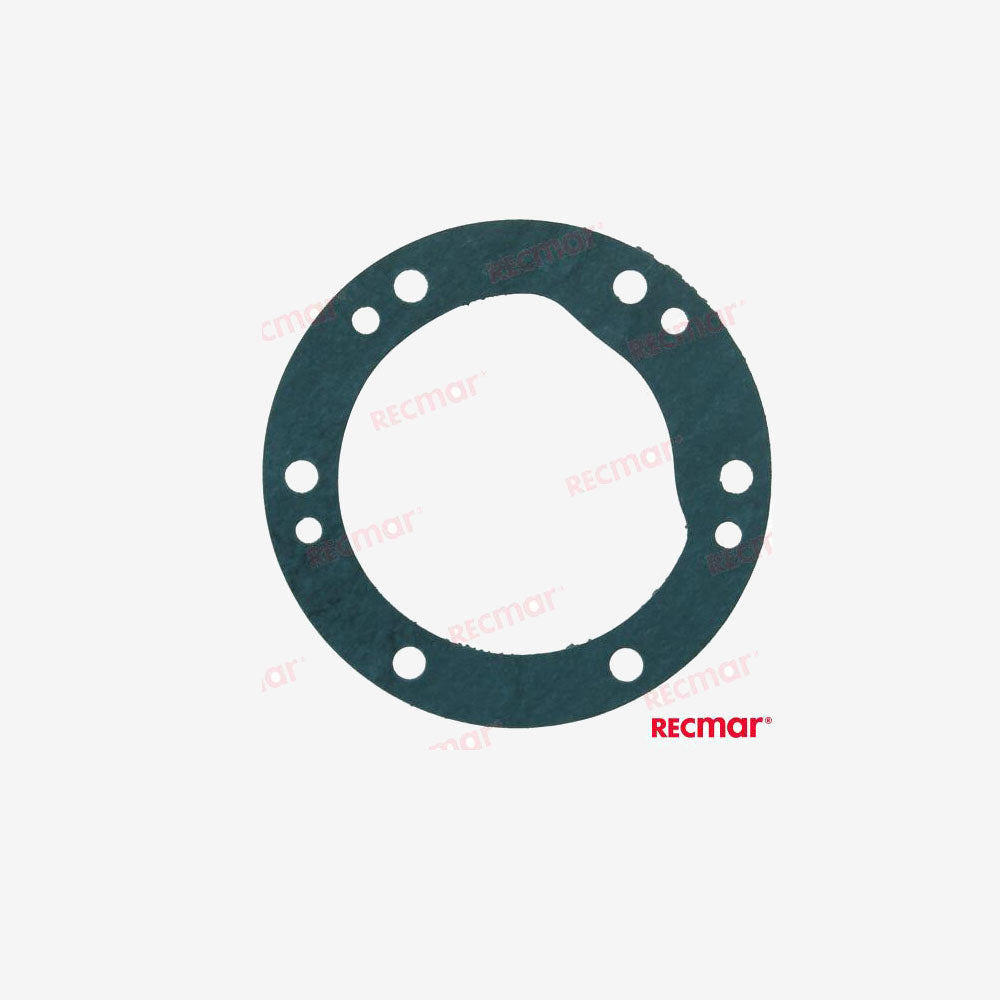

REC124223-42110 Water Pump Cover Gasket | Compatible with Yanmar 2GM/3GM/3HM Engines | OEM Replacement

Premium Water Pump Seal for Yanmar Marine Diesels

The REC124223-42110 is a precision-engineered gasket designed for Yanmar 2GM-3HM series water pump covers, ensuring leak-free coolant circulation in marine environments.

✔ Key Features

• OEM-Equivalent Quality: Manufactured to original Yanmar specifications

• Multi-Layer Construction: Fiber-reinforced elastomer with corrosion-resistant coating

• Precise Fitment: Laser-cut for perfect alignment with pump housing

• Temperature Resilient: Withstands -30°C to 150°C continuous operation

🔧 Compatible Yanmar Models

2GM Series:
2GMF
2GM20F, 2GM20FVE

3GM Series:
3GMF
3GM30F, 3GM30FVE

3HM Series:
3HM, 3HMF
3HM35, 3HM35C, 3HM35F

⚙ Technical Specifications

• Part #: REC124223-42110

• Type: Water pump cover gasket

• Material: Fiber-reinforced composite

• Thickness: 0.5mm (compressed)

• Weight: 0.01 kg

• Package Size: 7 × 7 × 0.1 cm

🛠 Installation Notes

1. Clean all mating surfaces with gasket remover

2. Apply thin layer of marine-grade sealant (Yanmar recommended)

3. Torque bolts in criss-cross pattern to 10 Nm (7.5 ft-lbs)

4. Pressure test cooling system after installation
