Description

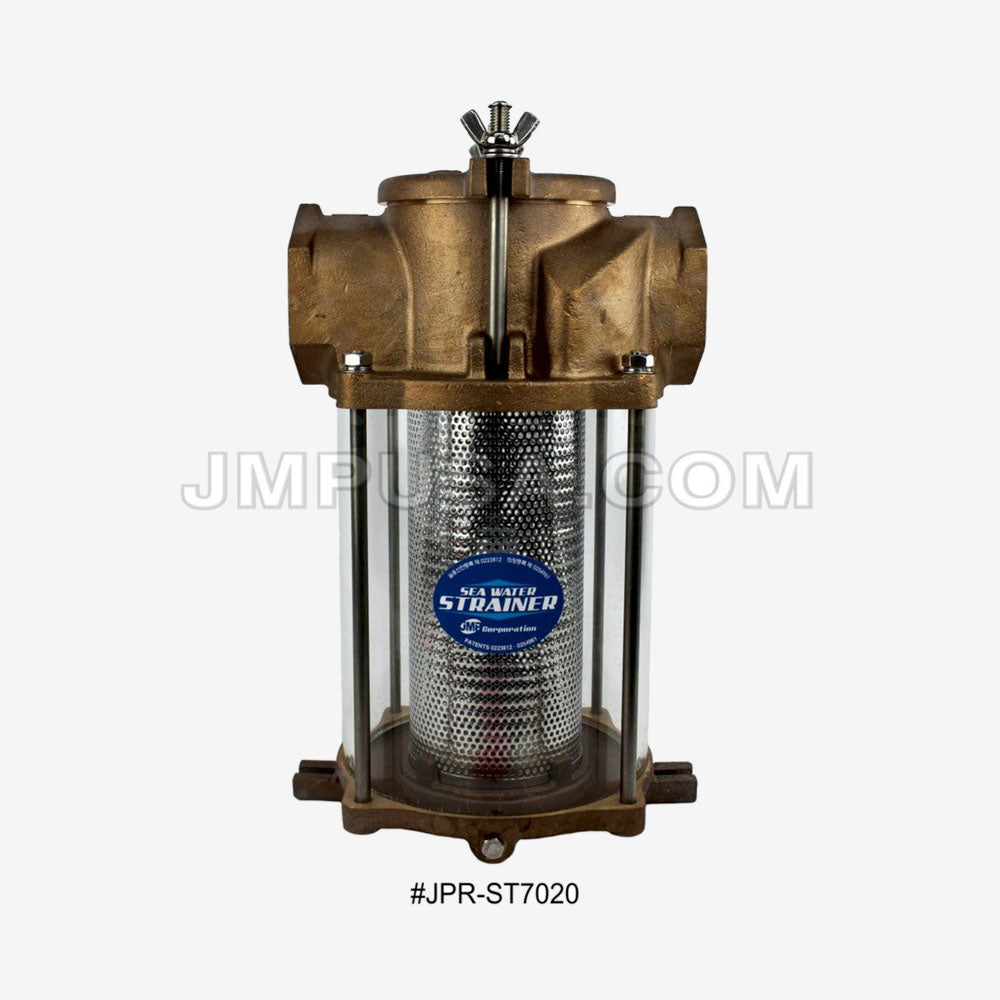

The JPR-ST7020 JMP Marine Seawater Strainer from the ST Series is designed for high-capacity marine cooling systems. Featuring bronze top and bottom castings with a stainless steel filter basket, this strainer ensures strength, durability, and long-lasting performance. Its transparent cylinder makes inspection quick and simple, while O-ring sealing provides reliable operation under high pressure. Easy to install and maintain, the ST7020 protects marine pumps and engines from debris and damage.
SKU: JPR-ST7020
- Heavy-duty bronze top and bottom casting
- Stainless steel chrome-plated filter basket
- Transparent cylinder for easy visual inspection
- O-rings ensure tight sealing under pressure
- Quick installation, cleaning, and maintenance
- Reliable protection for pumps and engines
- Includes zinc bar, wingnut, center rods, and air cap
Product Information & Specs:
- Inlet / Outlet Port Size: 3" NPT Pipe
- Top Casting: Bronze
- Bottom Casting: Bronze
- Basket: Stainless Steel
- Basket Filter Replacement p/n: FIL000502 (2mm)
- Anode Replacement p/n: ZEN000101
- Seal: O-Ring
- Size (A × B × C): 260mm × 445mm × 275mm
- Cylinder (Dia × H): 210mm × 250mm
- Weight (Approx): 36.30 LBS / 16.50 KG
Performance Table – Flow Rate
| Bar | 500 rpm | 1000 rpm | 1800 rpm | 2000 rpm |
|---|---|---|---|---|
| 0 | 175 L/Min | 325 L/Min | 591 L/Min | 651 L/Min |
| 1 | 155 L/Min | 277 L/Min | 566 L/Min | 591 L/Min |
| 2 | 115 L/Min | 228 L/Min | 482 L/Min | 542 L/Min |
| 3 | 33 L/Min | 116 L/Min | 351 L/Min | 394 L/Min |
| Max | 3.2 bar | 3.6 bar | 4.2 bar | -- |
