Description

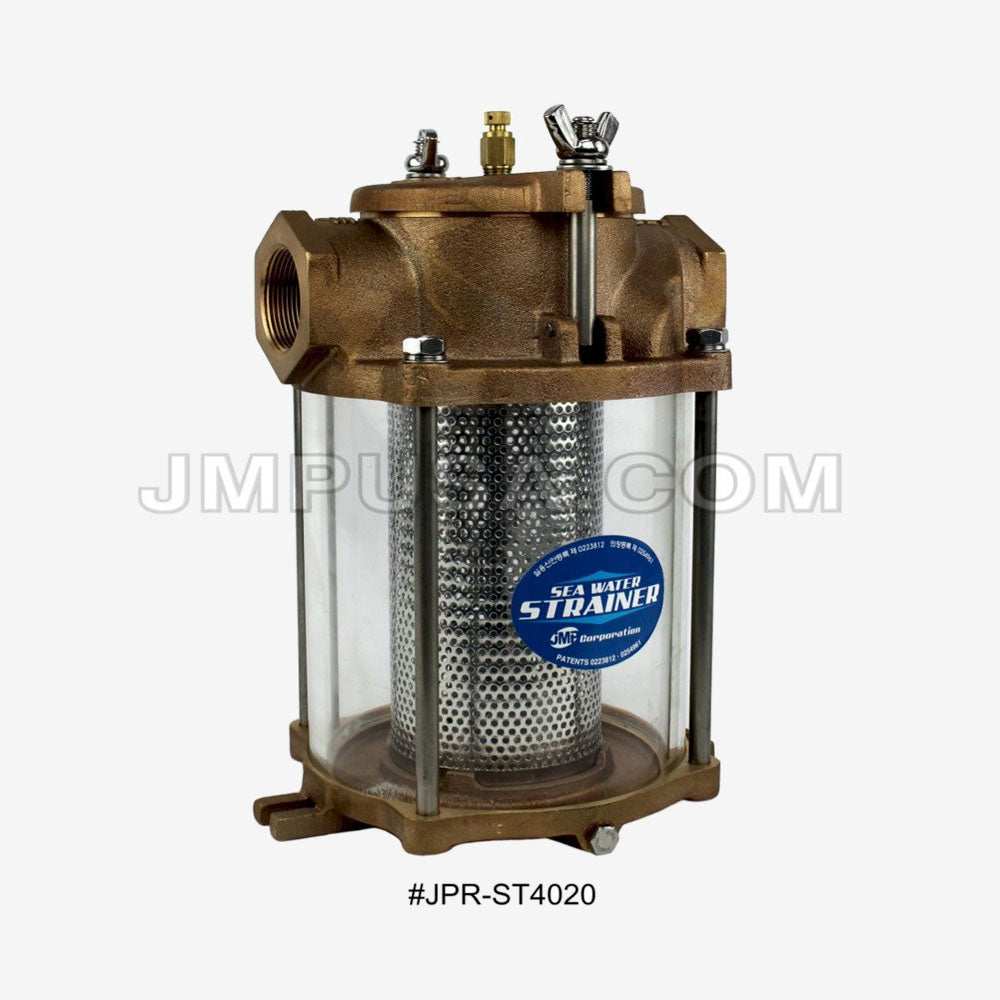

JPR-ST4020 JMP Marine Seawater Strainer – ST Series 1.5" NPT Ports
SKU: JPR-ST4020
Includes: JPR-ST4020 Seawater Strainer (ST Series) – Qty: 1
The JPR-ST4020 JMP Marine Seawater Strainer is engineered for maximum protection of your marine pumps and engines. Built with heavy-duty bronze castings and a stainless steel chrome-plated filter basket, this strainer ensures superior filtration and durability. The transparent cylinder allows for quick visual inspections, while O-ring seals provide reliable performance under high pressure. Ideal for yachts, boats, and commercial vessels.
- Robust Bronze Casting for long service life
- Stainless Chrome-Plated Filter Basket
- Transparent and Strong Cylinder for easy inspection
- O-Ring Seals for superior high-pressure performance
- Easy Installation, Maintenance, and Cleaning
- Protects Your Pumps and Engines
- Includes Zinc Bar, Wingnut, Center Rods, and Air Cap
- Inlet / Outlet Port Size: 1.50" NPT Pipe
- Top Casting: Bronze
- Bottom Casting: Bronze
- Basket: Stainless Steel
- Basket Filter Replacement P/N: FIL000302 (2mm)
- Anode Replacement P/N: ZEN000101
- Seal: O-Ring
- Size (A x B x C): 210mm x 334mm x 235mm
- Cylinder (Dia x H): 180mm x 190mm
- Weight: 22.0 lbs / 10.0 kg
| Bar | 500 RPM | 1000 RPM | 1800 RPM | 2000 RPM |
|---|---|---|---|---|
| 0 | 66 L/Min | 138 L/Min | 268 L/Min | 295 L/Min |
| 1 | 57 L/Min | 122 L/Min | 250 L/Min | 283 L/Min |
| 2 | 44 L/Min | 103 L/Min | 232 L/Min | 250 L/Min |
| 3 | 21 L/Min | 77 L/Min | 175 L/Min | 203 L/Min |
| Max | 3.4 bar | 4.2 bar | -- | -- |
