Description

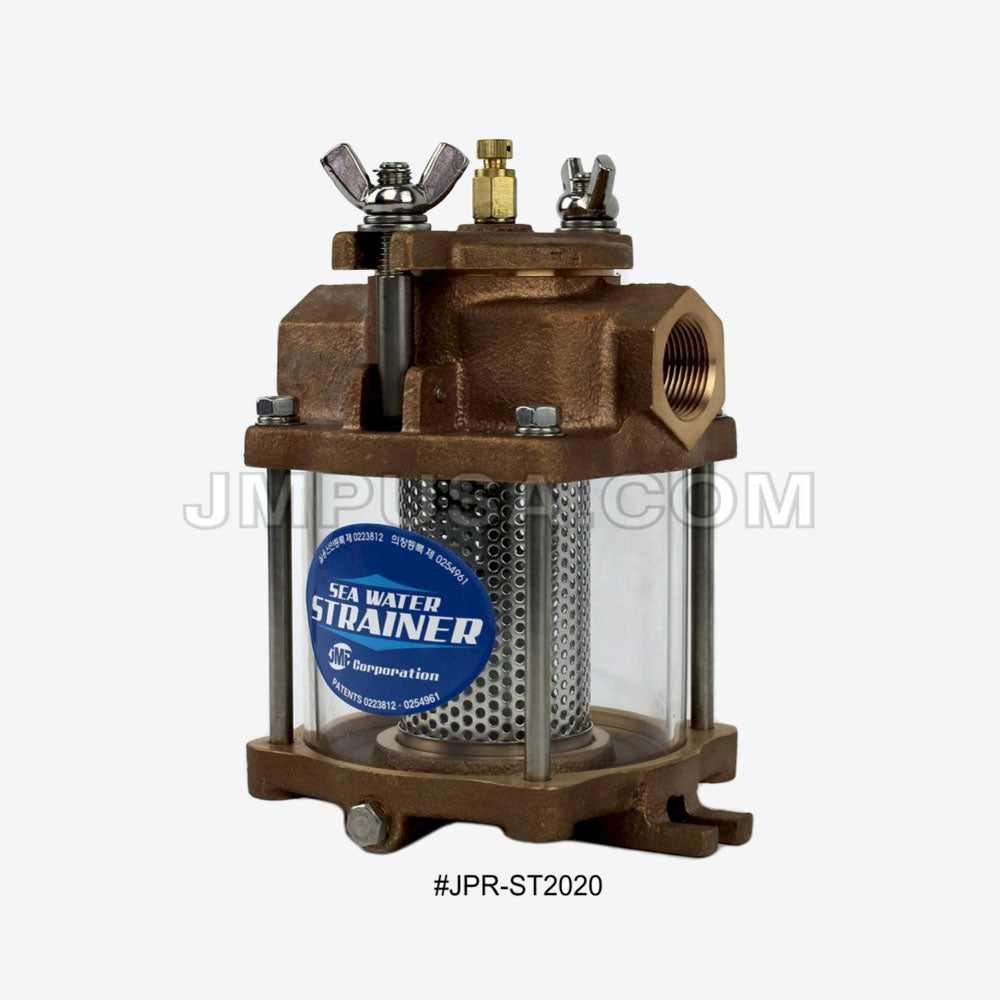

The JPR-ST2020 JMP Marine ST Series Seawater Strainer is engineered for reliable marine engine protection. Featuring 1" NPT inlet/outlet ports, robust bronze castings, and a stainless steel filter basket, this strainer ensures optimal performance in harsh marine environments. The transparent cylinder allows for quick inspection, while the O-ring seal provides leak-free operation under high pressure. Perfect for yachts, fishing boats, and commercial vessels.
- 1" NPT inlet/outlet ports
- Durable bronze top and bottom castings
- Stainless steel, chrome-plated filter basket
- Transparent cylinder for easy inspection
- O-ring seal for superior high-pressure performance
- Easy installation, cleaning, and maintenance
- Protects pumps and engines from debris
- Includes zinc bar, wingnut, center rods, and air cap
Part Number: JPR-ST2020
Inlet/Outlet Port Size: 1" NPT Pipe
Basket Filter Replacement: FIL0008 (3mm)
Anode Replacement: ZEN000101
Seal: O-Ring
Dimensions (A x B x C): 150mm x 220mm x 180mm
Cylinder (Dia x H): 130mm x 100mm
Weight: 13.50 lbs (6.15 kg)
Performance Flow Rate:
| Bar | 500rpm | 1000rpm | 1800rpm | 2000rpm |
|---|---|---|---|---|
| 0 | 27 L/Min | 58 L/Min | 106 L/Min | 122 L/Min |
| 1 | 25 L/Min | 53 L/Min | 100 L/Min | 116 L/Min |
| 2 | 20 L/Min | 44 L/Min | 86 L/Min | 100 L/Min |
| 3 | -- | 24 L/Min | 63 L/Min | 77 L/Min |
Max Pressure: 3.6 bar (1000rpm), 4.4 bar (1800rpm)
